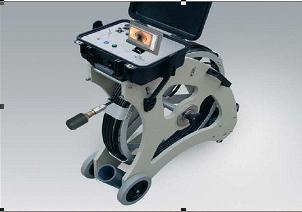

P PIPE VIEWER —TV portable system for inspection of lateral and household pipes

Product Details:

This unit is intended for the inspection of drains, tubes and lateral pipes with ID as from 80 mm.



The ergonomics of work is privileged in order to offer to the operator a perfect positioning of the control unit and its monitor.



The colour TV camera is ultra- compact, which facilitates its use within pipes of difficult access, or presenting sharp bends; watertight to immersion 30 meters, it incorporates a lighting system with high luminosity white LED' s.



The camera provides an horizontal image whatever its position inside the pipe  (pendular technology auto upright device).



A semi- rigid umbilical cable, housed in a portable coiler, pushes the camera inside the pipe up to 60 meters.



This suitcase type control unit is powered in 12 or 230 volts; it can be connected to a car's cigarette lighter, or to rechargeable battery pack (a 4-hour endurance).

.

A digital monitor/ recorder is incorporated into the control unit, mounted on an orientable plate

According to the versions, this unit can receive many options such as battery, text generator, camera with swivelling head…



P PIPE VIEWER is entirely compatible with the PIPE CRUISER range (trolley and cameras).



TECHNICAL SPECIFICATIONS

COLOUR TV CAMERA VS 668 FHRP

1/3 " CCD image sensor – PAL, 438 000 pixels

Sensitivity : 0.2 lux at F1.2

Resolution : 480 TV lines

Electronic shutter

Lens : 4 mm

Power supply : 6 V dc / 200 mA

Anodized aluminium housing

L 66 mm, diameter 53 mm

Weight: 0.3 kg

Waterproof: IP68, 30 meters(immersion)

Built-in annular light with high luminosity white LED’s (50 000 hours life time)

Incorporates an auto upright device to keep image in horizontal position

Cable gland or Jupiter connector assembly

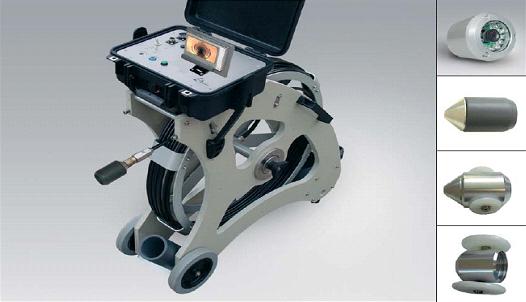

SET OF 3 MODULES MP 668 FP

for protection / centering of VS 668 FHRP camera

Sheath for Ø 80 to 150 mm

Module with wheels for Ø ≥ 150 mm

Module with large wheels for Ø ≥ 200 mm





MINI STEEL PORTABLE COILER DOFR PPV

For OFR semi rigid umbilical cable

Capacity: 60 meters

Construction in high density polypropylene and aluminium

L x d x h: 820 x 300 x 780 mm - Weight : 17 kg

Integrated distance counter

Slip ring assembly

Connecting cable to control unit



CONTROL UNIT VSR 20

Piloting TV camera and lighting

12 V DC Power supply

L x w x h: 280 x 340 x 140 mm

Weight: 2 kg

Delivered in a IP 67 watertight case

Electronical control of the distance displayed on the video

Integrated LCD monitor / recorder

Digital video recording transferable on a PC



OPTIONAL (according to versions)

OPTION1VSR20 220 V AC power supply

OPTIONVSR20 Autonomous battery integrated in the control unit

GT6 Text generator

AST10/T10 Flexible articulation
