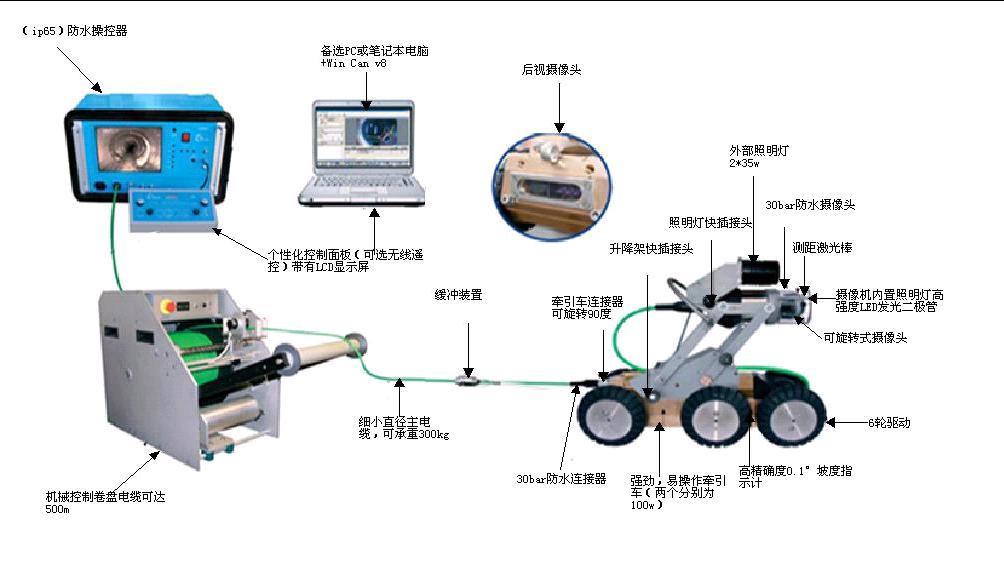

This powerful and modular system allows the inspection of any type of pipes, with diameter ranging from 150 to1800 mm, in particularly hostile environments. It is fitted with either a DTR 65 HRC camera or a FTR 80 C zoom camera. It can be equipped with a real time deflection measurement system (SIMCO), a motorised pantograph or a satellite camera module.
CONTROL UNIT CONTAINER VSR65
Power supply and controls for: camera, trolley and lights
Dimensions: L x D x H: 560 x 560 x 365 mm –
Weight: 40kg
Control panel
TMO 500 A REEL
Capacity: up to 500 meters of umbilical cable
Self winding system：Winding and unwinding speed slaved to forward / backward，Electronic distance counter

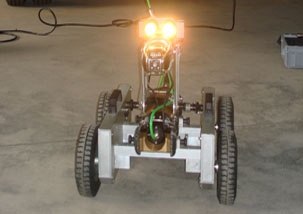

VSCE 150 ELECTRICAL TROLLEY

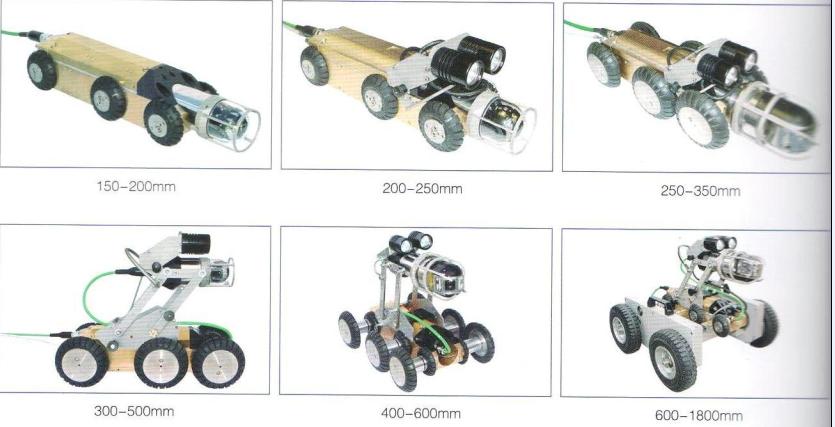

Modular, to be used within pipes diameter 150 to 1500 mm
Depth rating in water: 5 meters (trolley is internally pressurised)
Backwards camera with infrared lights，Can be used with the SIMCO module (deflection measurement)
OVR UMBILICAL
Internal Kevlar braid (pulling force: 300 kg )
Polyurethane external sheath, abrasion resistant
Diameter: 7.8 mm; Weight: 90g/m
DTR 65 HRC CAMERA
Resolution: > 450 TV lines; Sensitivity: 0.1 lux
Remote controlled focus
Diameter: 65 mm; Stainless steel Housing;
Operating pressure: 30 bars
Viewing head movements: Tilt+/- 135°;
rotation: unlimited
High luminosity LED (50000 hour lifetime)
FTR 80 C ZOOM CAMERA
Highly compact camera with swivelling head
Optical zoom 10x ; digital zoom 4x. Remote controlled focus
Resolution: 460 TV lines;
sensitivity 1lux
Housing diameter: 65 mm;
Head diameter: 80 mm
Stainless steel housing Depth rating: 5 meters
|
