Miniature Pipe Profiling Sonar Model 2512 USB |
 |
| Product Details: |
The Model 2512 Pipe Profiling Sonar provides an acoustic method for profiling the interiors of liquid filled pipes or boreholes. This method does not require draining of the pipes as with camera surveys and provides accurate quantified data which can not be obtained from a camera display alone.
The equipment comprises of an underwater Scanning Unit (which may be skid, float, tractor or ROV mounted) and a compact USB interface Unit. To complete the system a "Windows" P.C. with a USB port is required to run the 2512 system software.

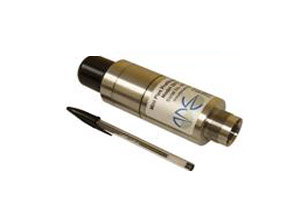

The Scanning Unit is a rugged stainless steel cylinder with a pressure balanced polyurethane transducer housing at one end, and the umbilical cable connector at the other. The standard Scanning Unit is rated at 100m operational depth. Two lead-acid batteries could be used to power the Scanning Unit together with a notebook P.C. for a completely portable solution. Internal Pitch and Roll sensors display in analogue and digital form the orientation of the sonar in the pipe.
The USB Interface Unit connects to either a USB1.1 or USB2.0 port on a host P.C. running under the "Windows" operating system. (Win'98 upwards is supported). The USB Interface has inputs for a cable payout encoder so that the distance travelled may be displayed to 0.1m resolution allowing accurate determination of where flaws exist in the pipe relative to the deployment position. The USB Interface is self-powered from the P.C.
FEATURES INCLUDE
—Real Time continuous scanning over a full 360° in 1 second
— Windows user-friendly software with USB hardware minimises training time
— Direct capture to Hard Disk for high resolution image save and restore Dual tracking cursor for accurate on-screen measurements
— 360º Internal Pitch and Roll sensors
— Quadrature and compatible cable counter interfaces built in
— 500m cable drive as standard, fibre-optic system optional
— Automatic profile detection and output in ASCII format for import into third party 3D modelling software
The resolution and update speed of the Model 2512 Pipe Profiling Sonar is second to none in the field of mechanically scanned sonar’s. The 2MHz acoustic signal is amplified and logarithmically compressed prior to being digitised by a Flash A/D converter. The angular resolution of the system is 0.9°, which gives 400 sectors per revolution. For each sector the data is over sampled and peak detected to arrive at 250 range cells. The digitally generated graphics display uses 256 colours to represent the signal amplitude. At a minimum full-scale range of 125mm this gives a range resolution of 0.5mm and at 2m range the resolution is 8mm.
The acoustic beam-width of 1.8° ensures that the finest detail from the pipe surface is recorded. Pitch and Roll sensors inside the scanner record the attitude of the sonar to a resolution of 0.1°. The sonar has been engineered for extended operations in hostile environments. The transducer and drive motor are totally enclosed in an oil-filled pressure
balanced housing which is hermetically sealed from the stainless steel electronics pod.
The system has many applications other than inside pipes where short range high precision measurements are required with a rapid screen update.
Software Features
Display Modes: Polar - full 360° coverage, Sector - 30° to 270° arc width at 30° to 330° centre angles in 30° steps
Range Settings (mm): 125, 187, 250, 375, 500, 750, 1000,1500, 2000
Range Resolution: 1/250 of full scale range, e.g. 0.5mm at 125mm
Angular Resolution: 0.9 degrees
Tx Pulse Length: Variable 4usec to 20usec
Display Resolution: 400 sectors of 250 range cells
Colour Control: 8bit multiple palettes with min, max and step control to optimise dynamic range
ASCII Output: NMEA style profile string via RS232
Auto-start: May be used autonomously without keyboard, mouse or display for remote data capture when it is not possible to use a cable
Viewer Program: A separate viewer program is available to allow clients to post process andprint stored images
Operating System: Windows '98, ME, 2000, NT, XP
Underwater unit
Acoustic Frequency: 2MHz
Beam Width: 1.8 degrees (conical)
Receiver: Logarithmic
Band-width: 500 kHz
Pitch/Roll Sensors: Micro-machined accelerometers resolution 0.1 degrees
Power Requirements: +14VDC at 1A maximum
Overall Length: 178mm
Diameter: 50mm
Finish: Stainless Steel 316 with polyurethane transducer housing
Operating Depth: 100m
Operating Temp: 0 to + 40 degrees C
Weight in Water: 0.4 kg
Weight in Air: 0.75 kg
Protocols: USB 1.1 and USB 2.0
Cable Payout Input: +5V
Power Requirements: +5VDC at 200mA typical (self-powered from USB port)
Dimensions: Width: 110mm Depth: 165mm Height: 35mm
Options Include:
— AC to DC power Supply with USB Interface Unit
— Cable drum with slip rings (various lengths)
— Fibre-optic drive modules for extended cable length |
