OPTIMA

Product Details:

Control Unit

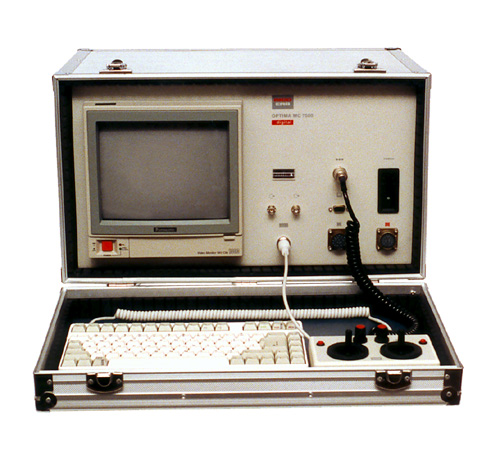

—Control unit OPTIMA MC 7500



High-resolution 10" colour monitor ,control electronics for camera ,lighting, cable drum(up to 600m cable length )and carriage , video output , handheld remote control with joystick, installed in aluminum case



—Data indication



Free text display, multi-coloured in 22 lines of 40 characters each, 3 status lines for a total of 72 measured values, e.g. company name, data and name, meter reading, tilt, etc. compact PC keyboard , serial RS 232 PC interface, for connecting a drain detection program



 cable drum unit



Cable drum MT 2002 ED



—Built-in cable drum MT2002 ED (up to 600m) motorised, fully synchronized cable drum control, with reversing spindle for even cable feed, mechanical and electronic meter with digital display, emergency stop switch, optionally automatic or manual mode, single-wire cable(Φ6.5mm)



—Camera cable 300m ED special coaxial cable, Φ6.5mm, PU sheath with Kevlar reinforcement



—Strain relief ED



 camera unit



—Carriage FW200ED with2 powerful motors, 6 driven wheels, tilt sensors, tip protection,  internal temperature and pressure monitoring with display in the monitor picture, Auxiliary lighting 80w.



—Pan h tilt camera probe SR100 ED, with 10x optical and 4x digital zoom , pan 270°, tilt 360° without limiting, lighting intensity<1 lx, lighting 24w, autofocus, automatic aperture/white adjustment, optimum parameterization of the camera modules, zero setting and fast positioning
