The mini combo units come equipped with a hydraulic rear door, which opens fully so the operator can completely empty the contents. For operator safety, the door is controlled by push buttons located on the side of the unit.

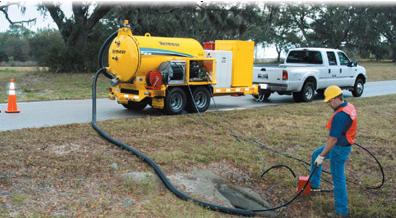

Two mounting options are available in the MC Series.Units can either be mounted to a flat bed vehicle or on a trailer and transported with a tow vehicle. A self-contained jetter cleaning system is also standard on these units.
MC Mini Combo Specifications
General
• Lockable curbside remote controls
• Hydraulic pump and hydraulic cylinder with remote controls to raise tank 60 degrees
• 6” (15 cm) brass rear discharge valve
• Suction hose storage located under trailer deck (trailer mounted units only)
• All controls and tools mounted at rear of unit for ease of operation
• 6” (15 cm) stainless steel portal shut-off in top of vacuum tank
• 30 gal (114 L) fuel tank with fuel gauge located in curbside control panel
• 6” (15 cm) amber strobe with two adjustable halogen work lights mounted at rear of tank
• (2) DOT safety cones with lockable stand
• OSHA Certified
• Battery with nation wide warranty
• One year limited parts warranty
• Six month limited labor warranty
Engine Closure
• Fully enclosed and insulated to eliminate noise and vibration using 2/3
open cell attenuation material
• All four sides of engine enclosure are removable for ease of
maintenance and service
• All service points for engine, water pump, and vacuum pump are
accessible from curbside
• All components attached to an isolation plate that is mounted within the
engine enclosure using isolation mounts
• Silencer for vacuum pump (mounted within the enclosure and not to exceed
80 DBA at full performance)
• Engine and silencer are exhausted through the bottom of the engine enclosure
• High pressure water pump to be completely inside enclosure Filtration
• Bag House (Big Red) – with 100 square feet filtration media, combined with 10 gal (38 L) water trap
• Filtration cylinders are washable and removable
• WET or DRY industrial filters rated at 5:1 air cloth ratio and grain loading of 30-g/acf using 0.5-micron silica dust emissions of .0060 g/acf Water
• 4000 psi (275 bar) @ 4 gpm (15 L/min) water pump powered by same engine
• Electric clutch with on/off control and low water automatic shut-down
• 325 gal (1230 L) poly water tank plumbed to high pressure pump
• 50’ (152 m) of high pressure hose
• Manual locking hose reel
• 5’ (1.5 m) roto wand and control handle
• 3’ (0.9 m) variable nozzle wand for clean up
• 8 gal (30 L) semi-automatic antifreeze system
Control Panel
• Water proof and lockable
• Mounted at the rear/curbside in operators station for easy operation
• Vacuum pressure gauge
• Fuel gauge
• Key switch
• Electronic throttle switch
• Water pump switch
• Lights and DOT strobe controls
• Volt Meter
• Hour meter
• Fuses for water pump and electronic choke
• Oil Pressure gauge (diesel only)
• Water temperature gauge (diesel only)
Tank
• Full open rear door
• Hydraulically opened and locked rear door, with push button controls
• UHMW tank liner on bottom of debris tank
• 6” (15 cm) brass rear discharge valve with dust cap
• Large 6” (15 cm) stainless steel portal shut-off (stops vacuum when debris tank is full)Trailer
• Dual “DEXTER” easy lube axles with “Slipper Springs” rates at 10,000 lb (4535 kg) each
• GVWR at 20,000 lb (9072 kg)
• 10,000 lb (4535 kg) jack stand with spring loaded foot
• Empty weight is 3,475 lb (1576 kg)
• 5’ (1.5 m) x 15’ (4.6 m), 3/16” inch diamond plated steel deck
• Pintle hitch
• Electric brakes on both axles, with safety break away
• 8 – LT235/85R16 tires and 8 lug wheels
Boom (Optional)
• 4” (10 cm) pickup hose
• 6 way movement
• Completely self-contained
• Powered in/out/up/down
• Safe tank mounted nesting area
• 360 degree movement
Dimensions
• Component
Length: 180” (457 cm), Width: 34” (86 cm), Height: 80”, (203 cm)
• Trailer Mounted
